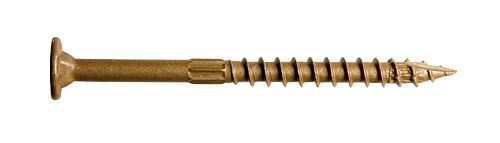

Simpson Strong-Drive® SDWS™ FRAMING Screw

Simpson Strong-Tie

SKU: SDWS16312QR50

$21.53
Unit price per

Select

Quantity

+ -

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is superior to nails in holding power and pull-out resistance. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC^® and IBC^® code requirements for most common wood framing applications.

The screw has a SawTooth^® point that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly for more secure drive control. Available in 2 1/2", 3", 3 1/2" and 4" lengths for a variety of uses.

Key Features

Washer head with underhead box nibs provides increased bearing in structural applications and provides clean and easy countersinking
SawTooth^® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
The 6-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
Quik Guard^® coating provides protection in indoor and outdoor applications

Applications

Multipurpose wood-to-wood and engineered-wood applications, including framing, indoor/outdoor projects

Product Includes

Driver bit BIT25T-2-R2

Patent Information

US Patents 9,523,383; 11,181,138
